Ford 6R60/75/80/100

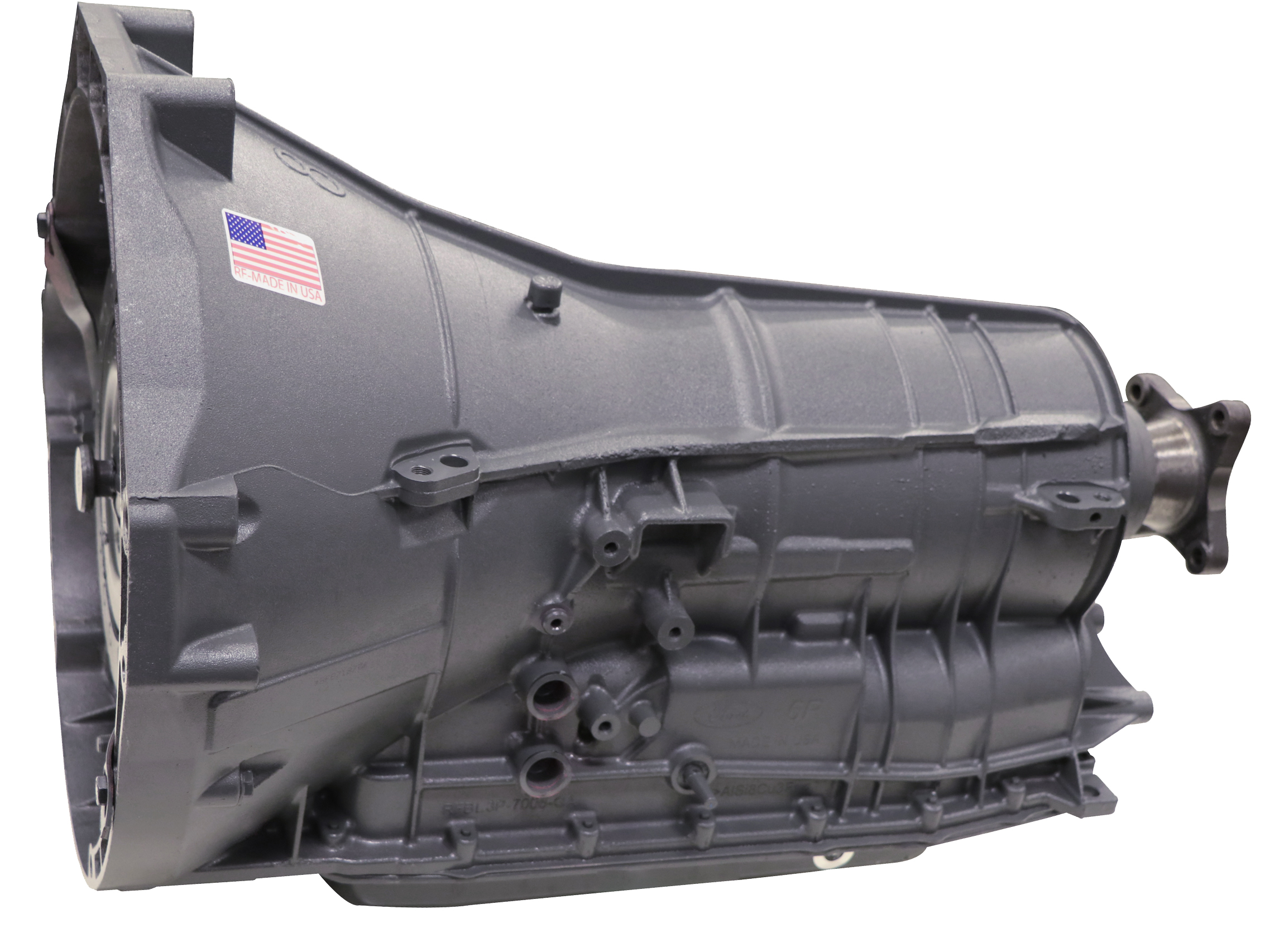

JASPER® remanufactured Ford 6R60/75/80/100 transmissions are built to meet, or exceed, OEM measured standards and have a 3 year/100,000 mile nationwide, transferable parts and labor warranty. Click here for complete warranty information.  Remember, this is a completely remanufactured automatic transmission assembled to exacting tolerances and live-run dynamometer tested for reliability.

The 6R60/75/80/100 transmission family is widely used in popular applications such as the Ford Expedition, Explorer, and Explorer Sport Trac; Lincoln Navigator; and Mercury Mountaineer.

The 6R60/75/80/100 transmission family is prone to issues that include: overheating of the TCM, intermittent output speed sensor signal loss, transmission overheating, deterioration of the composite accumulator damper (resulting in harsh shifts), valve body valve and bore wear (resulting in erratic shifts), transmission performance/TCM/CAN software malfunction, transmission TCM reprogramming and valve body ID and solenoid strategy, and snap ring dislocation on early design overdrive, direct, and intermediate clutches.

JASPER remanufacturing advantages include:

  • 100% installation of a thermal conductive material to improve heat dissipation between the TCM and valve body.
  • 100% replacement of lead frame which includes speed sensors and range switch to prevent transmission from dropping into first gear.
  • JASPER installs a larger oil pan on select models for increased oil capacity.
  • 100% installation of steel bumpers in the valve body accumulator to prevent deterioration.
  • 100% JASPER remanufactured valve body, including vacuum testing to verify hydraulic integrity.
  • 100% electronic testing of TCM.
  • 100% dynamometer testing and TCM validation using state-of-the-art CAN software package.
  • JASPER offers free rental of a J2534 reprogramming device to assist in the reprogramming of the TCM and ECM (Engine Control Module) to ensure the latest OEM calibration is installed in 2006-2010 vehicle models.
  • The Valve Body ID and Solenoid Strategy Numbers are supplied in addition to a free rental of a J2534 reprogramming device for 2011 and later models and must be programmed into the TCM.
  • 100% installation of the latest-design, upgraded pressure plates and snap ring to eliminate snap ring dislocation causing unit failure.

Please visit our Video Library to learn more about some of the quality processes we perform to this transmission family.

Go to our online catalog to get a price on a JASPER Ford 6R60/75/80/100 automatic transmission for your specific vehicle application. Most applications of the JASPER remanufactured 6R60/75/80/100 transmission are available immediately from our huge distribution network throughout the U.S. This means you can be up and running again quickly and reliably. So, as soon as you get a price from our online catalog, just click on the Find an Installer icon to find the installer closest to you.

Full warranty disclosure available on our website or upon request. Specifications subject to change without notice.

Ford 6R60/75/80/100 Transmission Flyer

Ford 6R60/75/80/100 Transmission Updates
